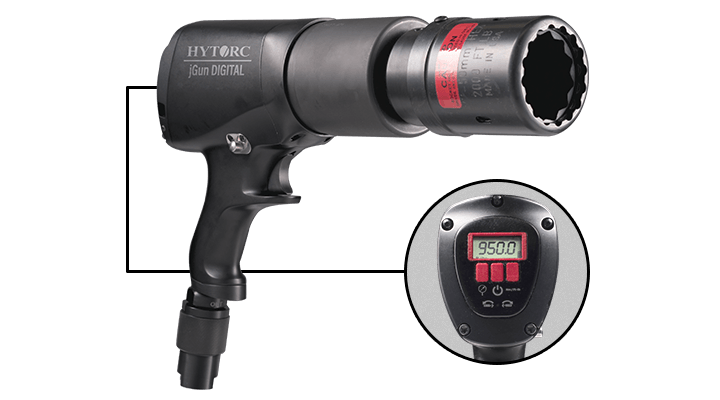

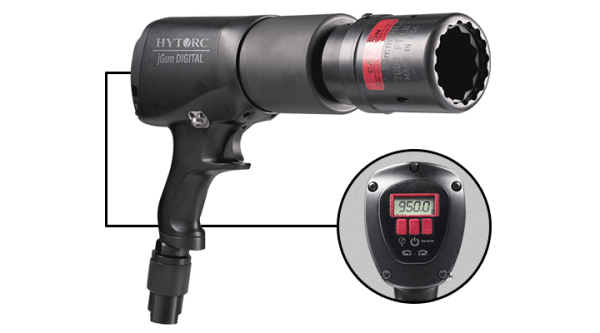

jGun DIGITAL

The new JGUN DIGITAL series from HYTORC is the world’s first torque-adjustable pneumatic multiplier with a digital readout and FRL-free operation. Unlike other systems that require a separate filter, regulator and lubrication system between the air line and the tool, the patented design of the JGUN DIGITAL eliminates the need for this add-on for the highest level of portability and convenience.

01. DIGITAL READOUT

The jGun Digital is the world’s first industrial torque multiplier with a digital readout for instant confirmation of selected torque. No more pressure-to-torque conversions or calculations. Select between ft-lbs and Nm.

02. BUILT-IN TORQUE ADJUSTMENT

The jGun Digital is the first of its kind with an onboard air regulator for simple torque adjustment with a twist of the connector at the bottom of the handle. Especially convenient when switching from tightening to loosening, giving you the ability to quickly adjust to full power for fast and easy break-out.

03. INDUSTRIAL-GRADE MOTOR

The new motor featured in the jGun Digital is a workhorse designed for heavy industrial use. With maximum power to weight and a rugged corrosion resistant design, this motor eliminates the need for separate air filters and lubrication systems making the Digital jGun the most portable air powered torque gun on the market.

MODEL Height (H) Width (W) Length (L) RPM Drive Weight Torque Range
jGUN DIGITAL .25 7.06″ 2.72″ 7.15″ 65 3/4 7.20 Lbs. 48-259 ft-lbs
jGUN DIGITAL .5 7.32″ 2.74″ 8.07″ 24 3/4 7.20 Lbs. 129-508 ft-lbs
jGUN DIGITAL 1 7.32″ 2.74″ 8.82″ 6.5 3/4 10.00 Lbs. 301-1231 ft-lbs
jGUN DIGITAL 2 7.94″ 3.53″ 10.46″ 5.5 1 14.50 Lbs. 521-2190 ft-lbs
jGUN DIGITAL 3 7.94″ 3.53″ 11.11″ 5 1 15.75 Lbs. 852-3104 ft-lbs
jGUN DIGITAL 5 8.03″ 4.15″ 12.24″ 2.5 1 1/2 20.05 Lbs. 1150-5266 ft-lbs
jGUN DIGITAL 8 8.46″ 4.23″ 13.00″ 1.5 1 1/2 26.50 Lbs. 1743-7924 ft-lbs
