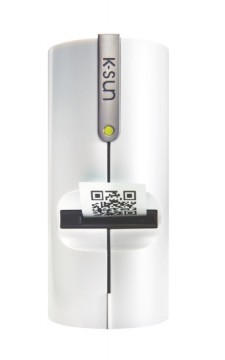

K-Sun PEARLabel™ 270

K-Sun PEARLabel™ 270

The K-Sun PEARLabel™ 270 label printer with MaxiLabel® Pro Labeling Software is Windows and Mac® compatible. It features 270 dpi thermal transfer print resolution in a sleek compact design.

The PEARLabel™ 270 Mac® and PC compatible label printer prints on 105 different industrial heat shrink tube, wire wrap, and special labeling materials in sizes ranging from 1/6” (4mm) to 1” (24mm) for multiple labeling applications and 15 heat shrink tube sizes and colors ranging from 1/8” up to 1/2” (AWG size range 1-22).

PEARLabel™ 270 uses snap-in K-Sun LABELShop® tapes and heat shrink tube cartridges.

Unique margin setting capability allows users to reduce unwanted margin space down to 1mm, saving tape cost and wasted tape when printing multiple labels. This Mac® compatible label printer also offers full automatic cut or continuous printing.

Simple to use software makes 15 different popular bar codes including the ability to custom design and print QR and DataMatrix 2-dimensional bar codes. MaxiLabel® Pro has 839 built-in symbols (ANSI, IMO, PPE, GHS, Target Organs and Signal Words) for creating safety signs and labels.

Split printing allows users to make multiple color signs and labels.

PEARLABEL™ 270 Printer Features
Machine Dimensions 1.9″ (4.8mm)W x 5.7″ (145mm)D x 4.2″ (107mm) H
Machine Weight .794lbs.
Print Resolution 270 dpi / 192 dot
Barcode Formats 15 EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, NW-7, ITF, EAN 128, GSI DataBar, Data Matrix, Micro QR Code, QR Code, Maxicode, PDF 417
Software MaxiLabel Pro Ver 4.0 for Windows®, K-Sun Label (Apple iPhone, iPad), MaxiLabel Lite for Mac®
Database File Compatability .csv, .txt, .xls, .xlsx
Tape Cutter Automatic tape cutter
Media Lengths 90.55 inch (10-2300mm)
Media Widths 4, 6, 9, 12, 24mm tapes3, 5, 8, 11mm shrink tube24mm cable24mm flag
Trimmer No
Operating System Windows® 7, 32/64; Vista 32/64; XP 32/64
Interface USB 2.0
Power Supply 11 – 0.55 [V]
Ratings UL, CE, GS [Level 5]
Warranty Lifetime Warranty
Battery Options None
Import Graphics Yes
Line Rounded, square, regular polygon, rounded rectangle, fan, continuous line, freeline, bezier curve
Wireless No
Network Card Options None
Symbols 839 Symbols, 8 Table Formats, 86 Borders, 158 Wizards
Multi Line Print Yes
Print Rotation Yes
Margins .04 – 19.68 1-500mm
Markings FCC CE WEEE
Print Technology High Durability Thermal Transfer
